UR-110

“The beauty of the UR-110 is in its apparent simplicity. We imagined time as a 'silent journey'. There are things happening on the dial that are not obvious at first glance. Everything looks normal; however, they are everything but.”

Martin Frei

About

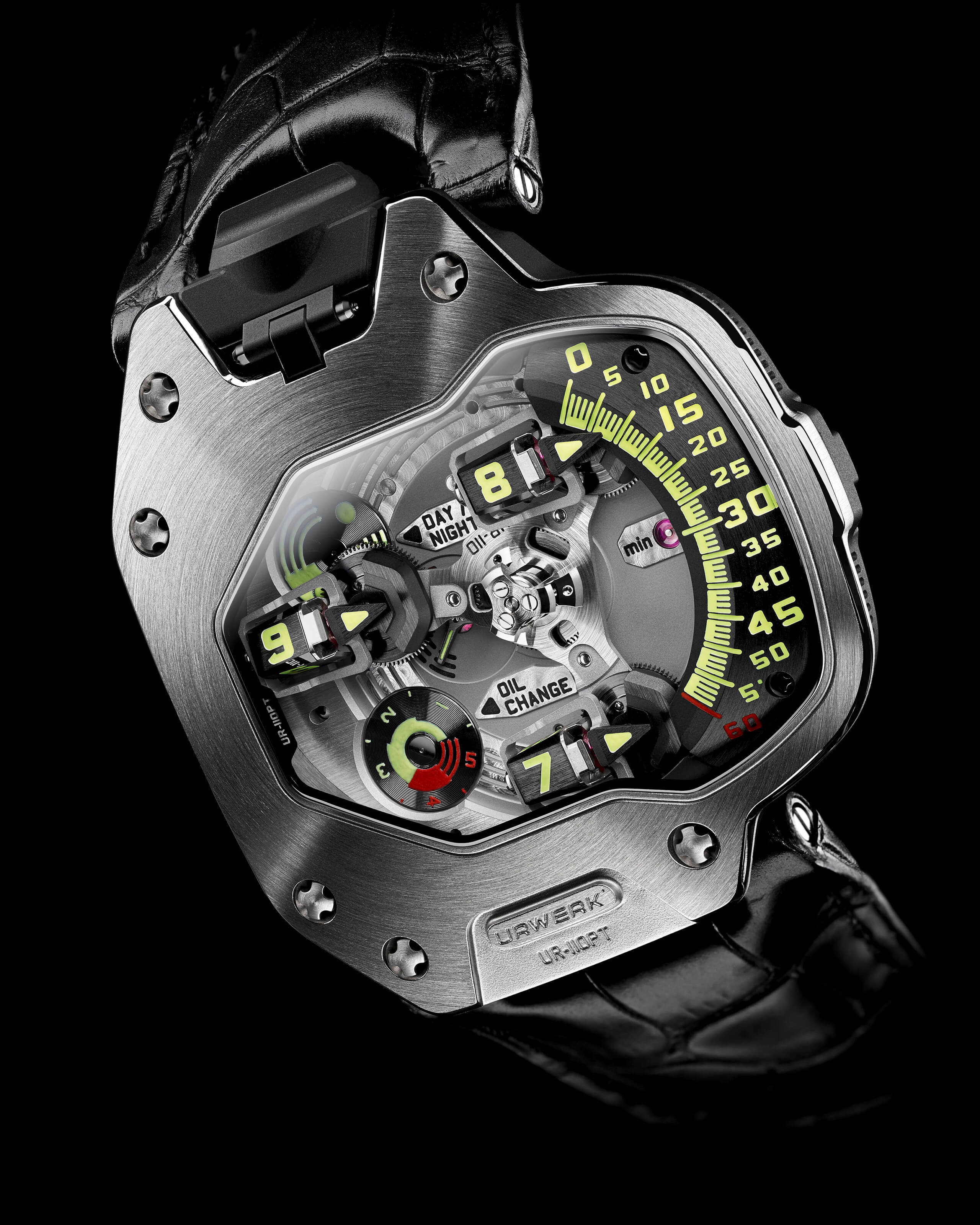

The UR-110

The UR-110 continues URWERK's radical tradition of telling the time using orbiting satellite complications. In the UR-110, the time is always shown on the right side of the watch. The UR-110 also features a Control Board on the dial side with indicators for Day/Night and Oil Change, as well as small seconds.

GPHG Best design

Insights

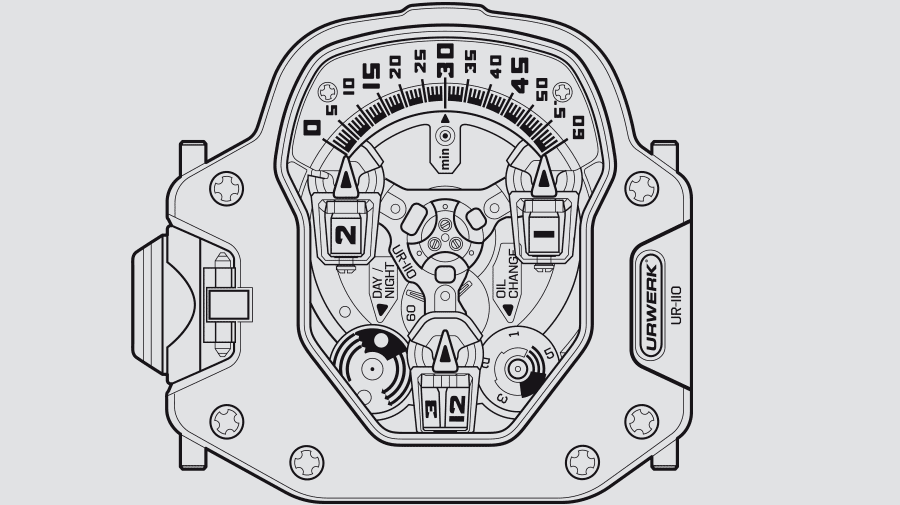

Construction complexity

Central carousel provides the complication with stability and equilibrium. Planetary gearing assures the parallel rotation of the three hour satellites

Counter-rotating hour modules

Each module is mounted on a planetary gear and is in constant counter-rotation to balance the direction of rotation of the central carousel.

“Oil Change” service interval indicator

The “Oil Change” indicator alerts the user when a service is due. This counter is reset to zero when the timepiece is serviced.

“Day/Night” indicator

The Day/Night indicator is a rotating disk marked with dark Super-LumiNova® for the night, white for the day and a striped mix for dusk/dawn.

Specifications

Case

Bezel in

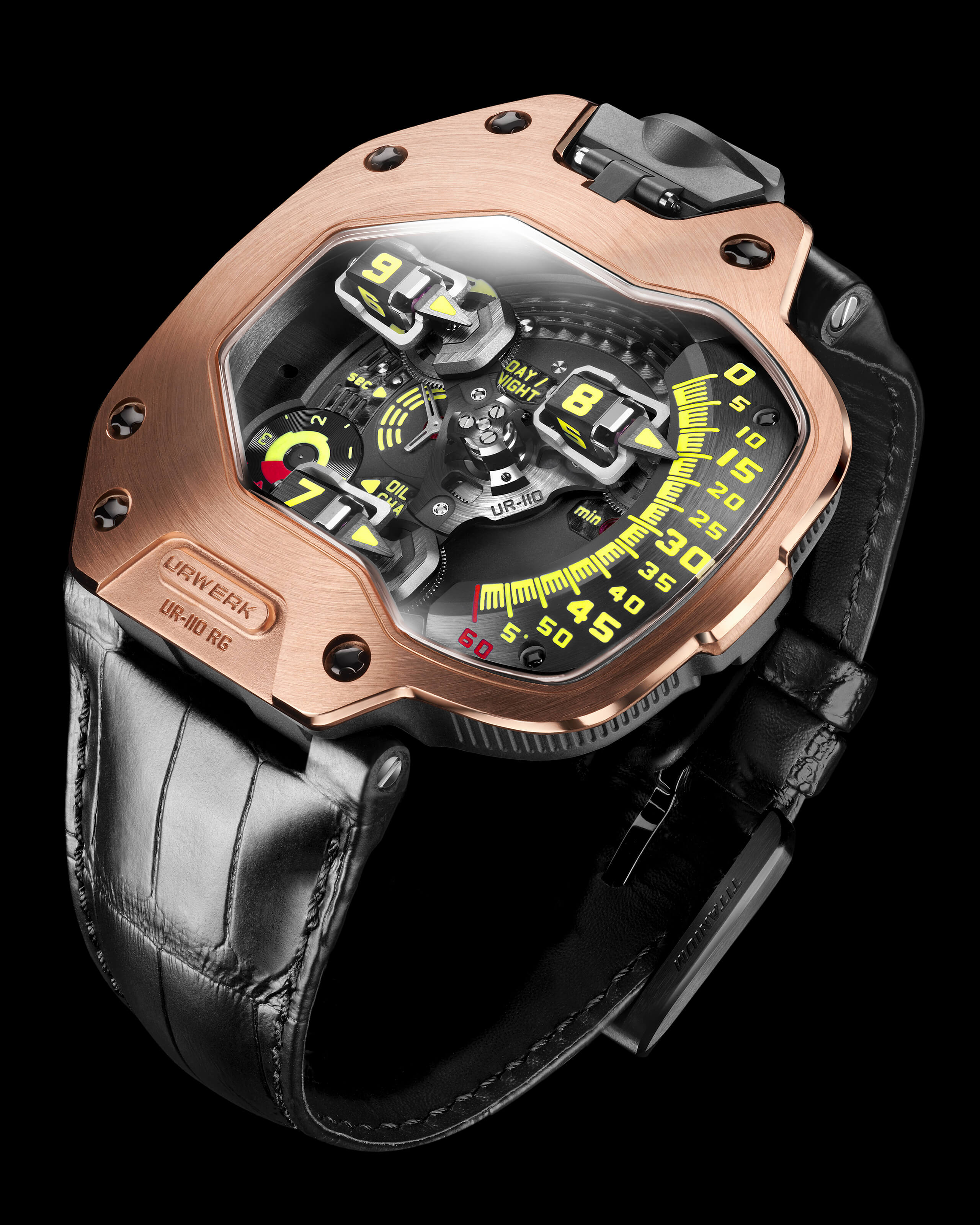

Red Gold, Platinum, AlTiN treated steel or Ebony

Dimensions

47mm x 51mm x 16mm

Glasses

Sapphire crystal with anti-reflective coating

Water resistance

Pressure tested to 3 ATM
Movement

Calibre

UR-9.01 self-winding

Jewels

46

Escapement

Swiss lever

Balance

Monometallic

Frequency

28,800v/h, 4Hz

Balance spring

Flat

Power source

Single mainspring barrel

Power reserve

39 hours

Winding system

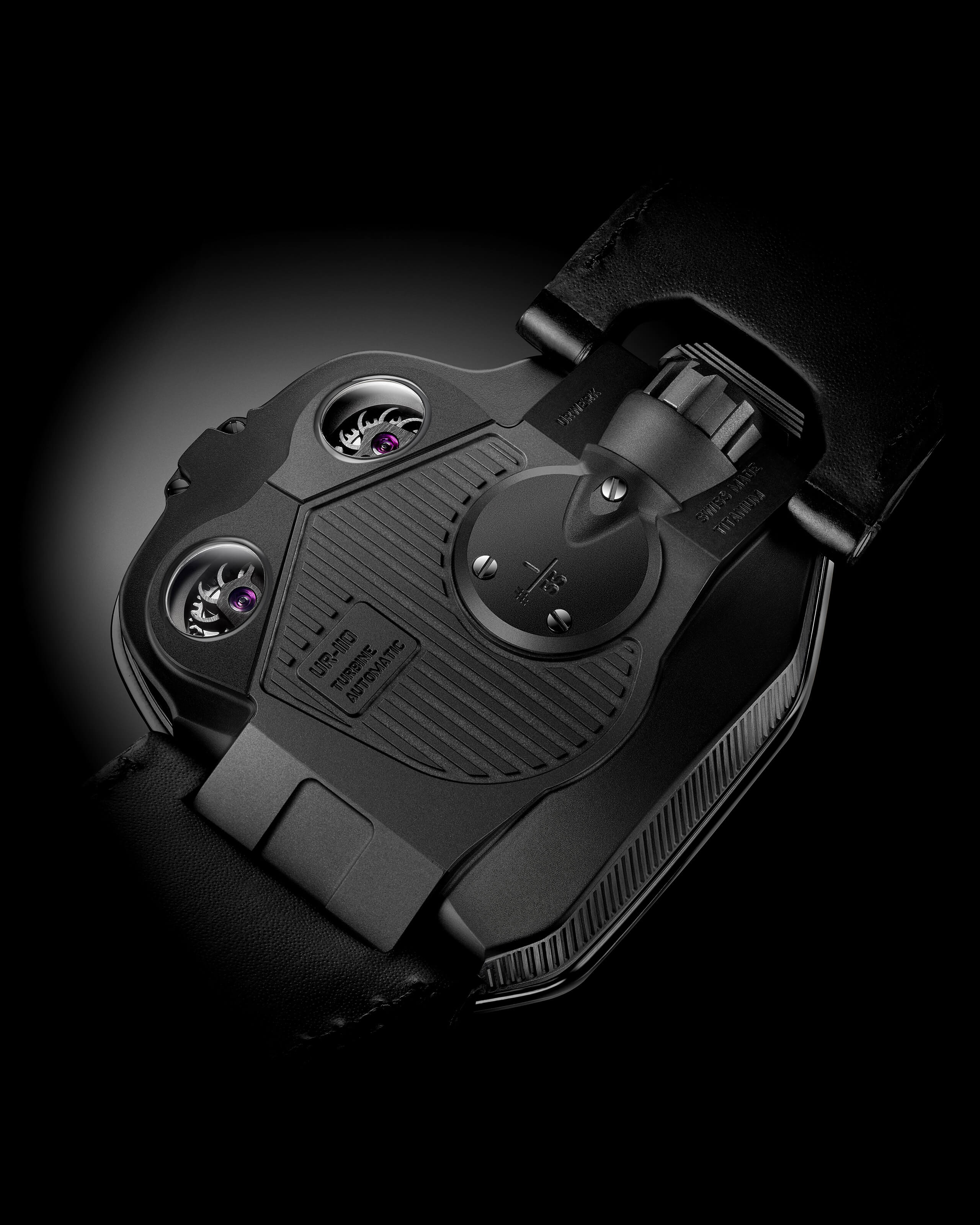

Unidirectional winding rotor coupled to twin turbines

Materials

Baseplate and satellite in brass, central satellite tower in ARCAP

Surface finishes

Circular graining, diamond polishing, chamfered and polished screw heads
Indications

Indications

Revolving satellite complication with wandering hour modules mounted on planetary gears. Control Board: Day/Night indicator; 'Oil Change' alerting service intervals and small seconds. Super-LumiNova® on markers.
Controls

Controls

Two-position winding crown with integrated protection
