Historical pieces

UR-1001

The UR-1001


The UR-1001 is a grand über complication both measuring and quantifying the era in its entirety, from a solitary second to astronomical millennia. Exuding force from a case seemingly carved from a block of solid metal, the UR-1001 marks the passage of time in seconds, minutes, hours, day/night, date, month, years, 100 years and all of the way to a monumental 1,000 years.

Swiss timepieces Special-project watch UR-1001

About

Cosmic Journey:
Merging Time and Space

Insights

Swiss timepieces Special-project watch UR-1001

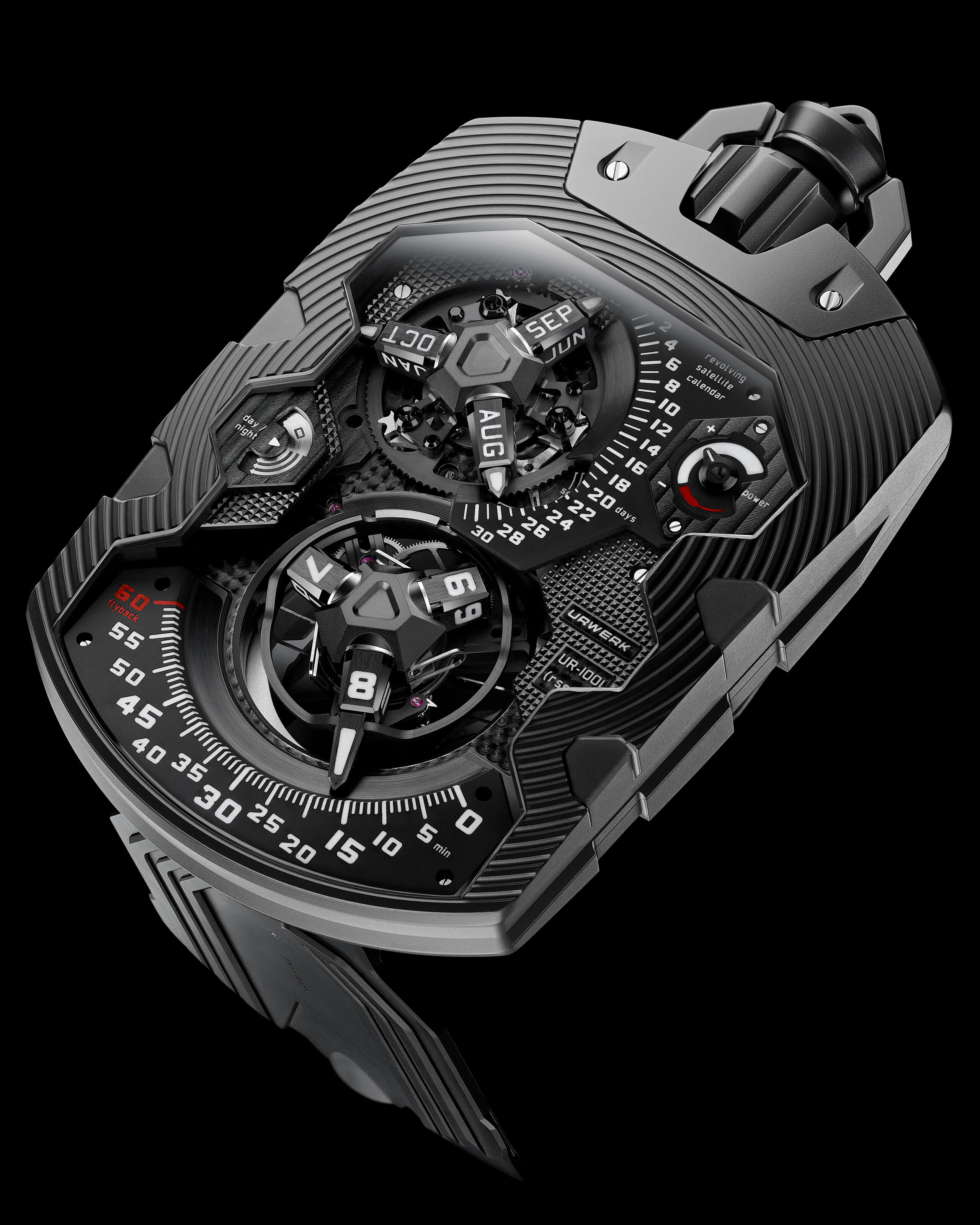

Day/Night indicator

The Day/Night indicator is a rotating disk in dark Super-LumiNova® for the night, satin finish for the day and a striped mix for dusk/dawn.

Revolving satellite calendar

The Revolving Satellite Calendar is an original annual calendar complication in the same family as the hour satellite complication. Months and date replace hours and retrograde minutes.

Power reserve indicator

39h power reserve.

Hour satellite complication and retrograde minute hand

The Hour Satellite Complication of the Zeit Device is a ‘flying’ design in that there is no top bridge supporting the carrousel. The retrograde minute hand is fixed to a sprung ring around the circumference of the satellite complication.

Swiss timepieces Special-project watch UR-1001

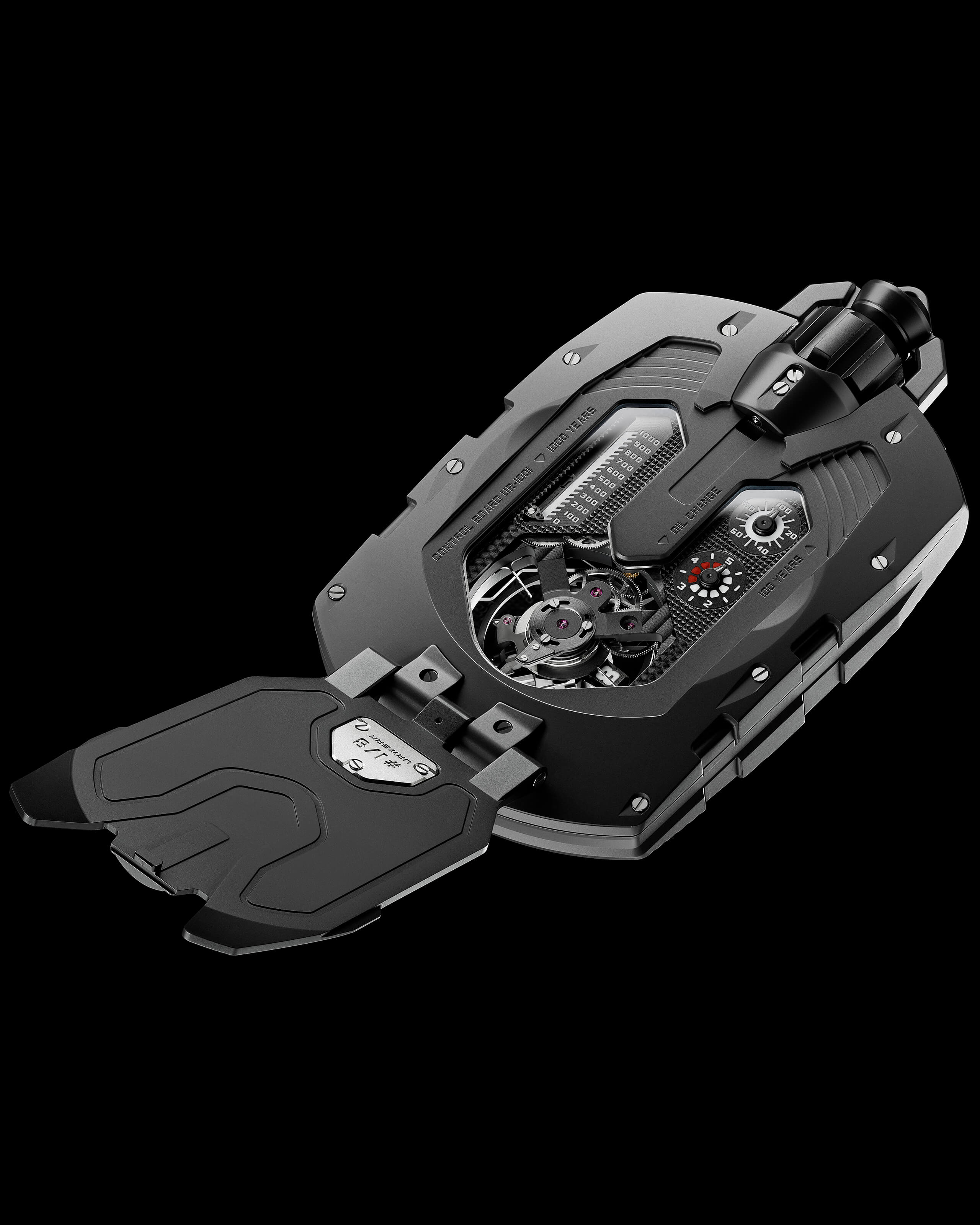

100-year indicator (BACK)

The 100-year indicator advances in 5-year increments and acts like the odometer of a car. The 100-year and 1000-year indicators of the UR-1001 register the total running time of the movement.

1000-year indicator (BACK)

When the hand reaches the 100-year mark, the small pointer at the bottom of the 1000-year indicator on the left takes a small 100-year step upwards on its imperceptibly slow, but deliberate journey to a new millennium.

"Oil Change” indicator (BACK)

The shortest time interval measured on the back is the 5-year Oil Change indicator, which alerts the user when a service is due (after three years). The counter is reset to zero when the timepiece is serviced.

Variations

UR-1001

Chain / Strap
UR-1001: Hand-made, heat-blackened steel links featuring bespoke URWERK clasp with carbineer closure / UR-1001Titan: Black leather strap created based on an original design by URWERK
Dimensions
106mm x 62mm x 23mm
Glasses
Sapphire crystal with anti-reflective coating
Water resistance
Pressure tested to 3 ATM
Calibre
UR-10.01 self-winding
Jewels
51
Escapement
Swiss lever
Balance
Monometallic
Frequency
28,800v/h, 4Hz
Balance spring
Flat
Power
Single mainspring barrel
Power reserve
39 hours
Winding system
Unidirectional winding rotor
Materials
Baseplate in ARCAP
Surface finishes
Circular-grained, Geneva waves and rhodium-plated baseplate, chamfered and polished screw heads
Indications
Revolving satellite complication with wandering hours, retrograde minutes, revolving satellite calendar with months and dates, day/night indicator, power-reserve indicator, running seconds
On the back
“Oil change” indicator (5 years), running-time indicator for 100 year, linear running-time indicator for 1,000 years / Super-LumiNova® on markers
Controls
Three-position winding crown

“Since we founded URWERK, we have developed new methods of displaying time. However, we were always constrained by the size of the wristwatch. With Zeit Device we could allow ourselves carte blanche and created a larger playground for our imaginations… and then filled it with all of our complications and indications.”

Felix Baumgartner
